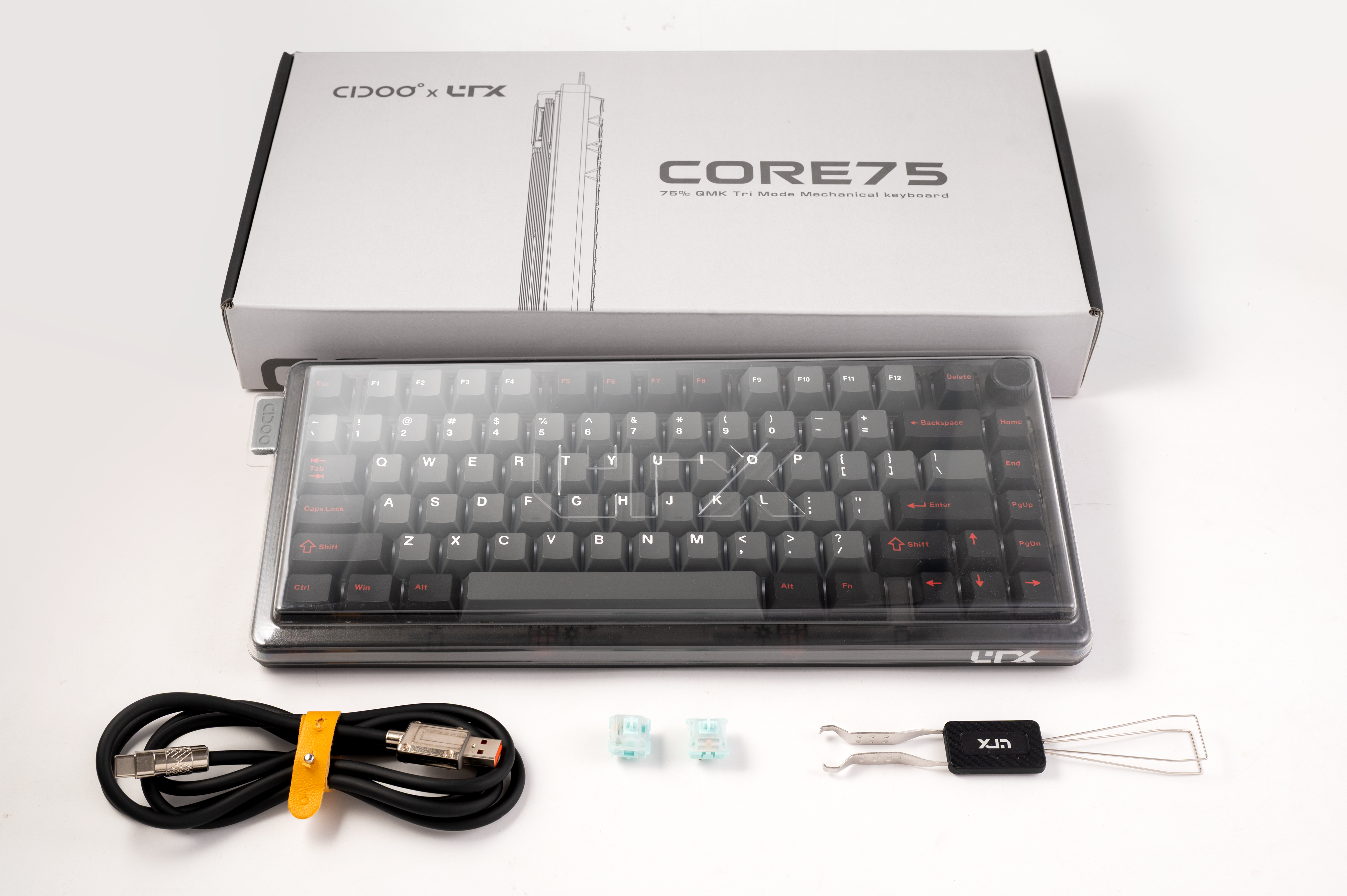

The URX Core75 is a 75% wireless mechanical keyboard designed for gamers, programmers, and keyboard enthusiasts.
Key Features
75% Compact Form Factor: 81 keys including a dedicated function row, arrow cluster, and navigation keys.
Integrated Rotary Knob: Can be assigned to any function using software.
Dual Mount Structure: Uses both Top Mount and Gasket mount for a typing feel similar to custom keyboards.
Tri-Mode Connectivity: Switch seamlessly between USB Wired, 2.4GHz Wireless, and Bluetooth.
Hot-Swappable Sockets: Supports both 3-pin and 5-pin MX-style mechanical switches without soldering.
Pre-Lubed Custom Switches: High-performance linear switches pre-lubricated for ultra-smooth keypresses right out of the box, delivering a refined, deep, and satisfying sound signature.
Double Shot PBT Keycaps: Premium PBT construction with double-shot legends that never fade or wear off, featuring a textured surface resistant to oil and finger shine.
North-Facing RGB LEDs: Bright LEDs with support for standard top-printed shine-through keycaps.
Translucent Case: Frosted translucent casing that diffuses light for an immersive, vibrant RGB underglow.
Open Source Firmware based on QMK: Uses open-source firmware based on QMK with VIA. Also fully supported on URX HUB.
RGB Customization: Supports SignalRGB and OpenRGB, featuring 50+ built-in RGB effects, PaletteFX support, and custom per-key RGB configuration.
SOCD (Simultaneous Opposing Cardinal Directions): Built-in support for SOCD for WASD keys, customizable in QMK firmware.
Premium FR4 Plate & PCB: Features a 1.2mm non-flex cut PCB paired with a 1.5mm thick FR4 plate, delivering a solid, rigid typing feel and great acoustics even without using sound-dampening foams.
5-Layer Sound Dampening: 5 layers of sound-absorbing foam to prevent case hollowness and deliver a refined, deep sound signature.
High-Quality Cable: Custom thick braided coiled cable equipped with metal connectors on both sides.
Technical Specifications
Product Overview
Feature
Detail
Product Name
URX Core75
Type
Mechanical Keyboard
Layout
Compact 75% ANSI (81 Key + 1 Knob)
Knob Support
Yes
Variants
Frost White, Frost Blue, Smoke Black, Smoke Grey, Smoke White
Connectivity and Power
Feature
Detail
Connectivity
Tri Mode (Wired, 2.4GHz, Bluetooth)
Max Devices
5 Connected Devices
Breakdown
3x BT + 1x 2.4G + 1x Wired
Cable Type
Detachable USB-C
Battery Capacity
4000mAh
Dongle Storage
Yes
NKRO Support
Yes
OS Support
Windows, macOS, Linux
Keycaps and Switches
Feature
Detail
Keycaps
Double Shot PBT Cherry Profile
Switches
Pre Lubed Zen Switches
Switch Support
3 Pin / 5 Pin Hot Swap
Stabilizers
Pre Lubed Plate Mounted
Pre Lubed Stabs
Yes
Screw in Stabs Support
Yes
Build and Mounting
Feature
Detail
Mounting Style
Top Mount + Gasket Mount
PCB
Non Flex Cut PCB
Plate
Non Flex Cut 1.5mm FR4 Plate
Disassembly
8 Screws + 2 Side Clips
Adjustable Height
Yes
Rubber Feet
Yes
Sound Dampening
Feature
Detail
Sound Dampening
5 Layer Sound Dampening System (IXPE Switch Pad + PET Sheet + PORON Plate Foam + PORON Bottom PCB Foam + Thick Silicone Bottom Pad)
